Overview
Item Number: 400-52506
100% Brand New Aftermarket Part From DB Electrical
Product Specs
| Item Condition | Aftermarket Part |

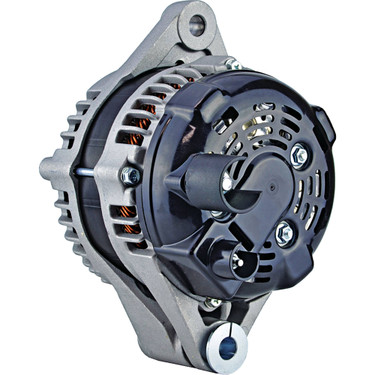

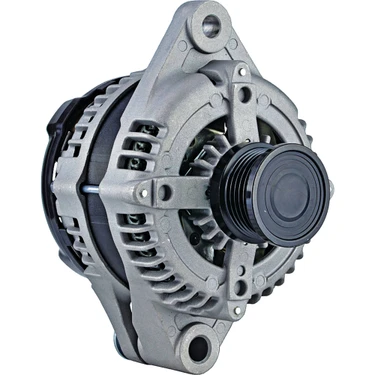

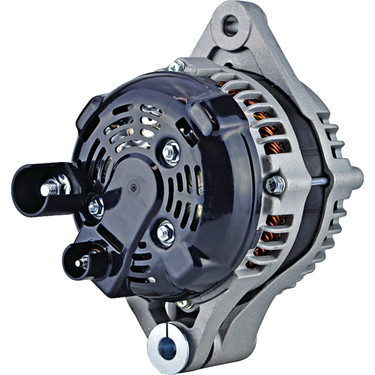

| Description | Alternator |
| Lester | 11594 |
| Family | Denso SC (Hairpin) |
| Volt | 12 |
| Amps | 140 |
| Regulator Clock | 7:00 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 12.400mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole 2 Type | Unthreaded |
| Mounting Ear Thickness | 0.709" |
| Mounting Ear Thickness | 18mm |
| Mounting Ear 2 Thickness | 2.539" |
| Mounting Ear 2 Thickness | 64.500mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | M5x0.8 |
| Polarity | Negative |
| Number of Grooves | 5 |
| Groove OD | 1.933" |
| Groove OD | 49.100mm |
| Pulley Type | Clutch |
Applications List
Select Make & Type
| MAKE | TYPE | MODEL | YEAR | ENGINE |
| Dodge | Auto and Light Truck | Dart | 2013 | 1368cc, 1.4L L4 |
| Dodge | Auto and Light Truck | DART | 2013 | 83cu in, 1.4L L4 |
| Dodge | Auto and Light Truck | DART | 2014 | 83cu in, 1.4L L4 |
| Dodge | Auto and Light Truck | DART | 2015 | 83cu in, 1.4L L4 |
| Dodge | Auto and Light Truck | DART | 2016 | 83cu in, 1.4L L4 |
| Fiat | Auto and Light Truck | 500 | 2012 | 1.4L |
| Fiat | Auto and Light Truck | 500 | 2013 | 1.4L |
| Fiat | Auto and Light Truck | 500 | 2012 | 1368cc, 1.4L L4 |
| Fiat | Auto and Light Truck | 500 | 2013 | 1368cc, 1.4L L4 |
| Fiat | Auto and Light Truck | 500 | 2014 | 1368cc, 1.4L L4 |
| Fiat | Auto and Light Truck | 500 | 2012 | 1368cc, 1.4L L4 EAB |
| Fiat | Auto and Light Truck | 500 | 2013 | 1368cc, 1.4L L4 EAB |
| Fiat | Auto and Light Truck | 500 | 2014 | 1368cc, 1.4L L4 EAB |
| Fiat | Auto and Light Truck | 500 | 2012 |
Replaces These Part Numbers
| Arrowhead | 400-52506R, AND0643 |
| Bosch | AL6499X |
| Chrysler Motors | 56029579AB |
| Denso | 104211-8000, 210-0864 |
| Fiat | P56029579AB |
| J&N Electrical Products | 400-52506 |
| Lester | 11594 |
