Overview
Item Number: 400-52414
100% Brand New Aftermarket Part From DB Electrical
Product Specs
| Item Condition | Aftermarket Part |

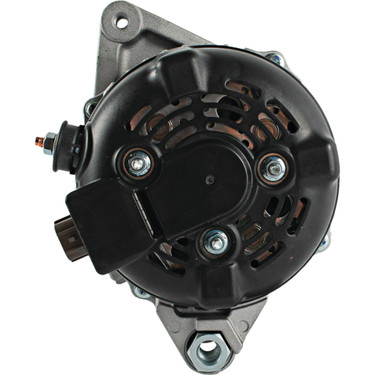

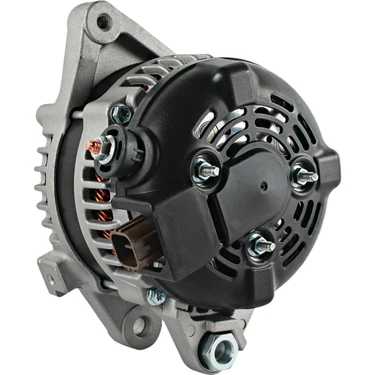

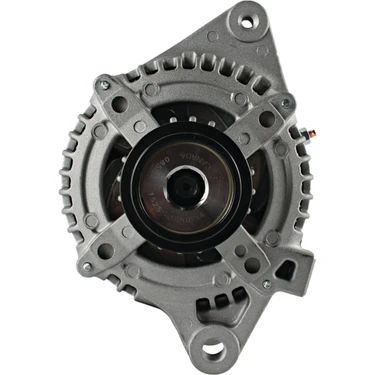

| Description | Alternator |
| Lester | 11577 |
| Family | Denso SC (Hairpin) |
| Volt | 12 |
| Amps | 110 |
| Regulator Clock | 9:00 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | M8x1.25 |
| Mount Hole 1 Type | Threaded |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | M10x1.25 |
| Mount Hole 3 Type | Threaded |
| Mounting Ear Thickness | 0.787" |
| Mounting Ear Thickness | 20mm |
| Mounting Ear 2 Thickness | 0.783" |
| Mounting Ear 2 Thickness | 19.900mm |
| Mounting Ear 3 Thickness | 0.909" |
| Mounting Ear 3 Thickness | 23.100mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M6x1.00 |
| Terminal ID 3 | IG |
| Terminal 3 Size | Spade |
| Terminal ID 4 | S |
| Terminal 4 Size | Spade |
| Terminal ID 5 | L |
| Terminal 5 Size | Spade |
| Terminal ID 6 | FR |
| Terminal 6 Size | Spade |
| Polarity | Negative |
| Number of Grooves | 6 |
| Pulley Type | Decoupler |
| Pulley Outer Diameter | 2.362" |
| Pulley Outer Diameter | 60mm |
Applications List
Select Make & Type
| MAKE | TYPE | MODEL | YEAR | ENGINE |
| Toyota | Auto and Light Truck | COROLLA | 2011 | 1.8L |
| Toyota | Auto and Light Truck | COROLLA | 2012 | 1.8L |
| Toyota | Auto and Light Truck | COROLLA | 2013 | 1.8L |
| Toyota | Auto and Light Truck | Corolla | 2011 | 1798cc, 1.8L L4 |
| Toyota | Auto and Light Truck | Corolla | 2012 | 1798cc, 1.8L L4 |
| Toyota | Auto and Light Truck | Corolla | 2013 | 1798cc, 1.8L L4 |
| Toyota | Auto and Light Truck | MATRIX | 2011 | 1.8L |
| Toyota | Auto and Light Truck | MATRIX | 2012 | 1.8L |
| Toyota | Auto and Light Truck | MATRIX | 2013 | 1.8L |
| Toyota | Auto and Light Truck | Matrix | 2011 | 1798cc, 1.8L L4 |
| Toyota | Auto and Light Truck | Matrix | 2012 | 1798cc, 1.8L L4 |
| Toyota | Auto and Light Truck | Matrix | 2013 | 1798cc, 1.8L L4 |
Replaces These Part Numbers
| Arrowhead | AND0597 |
| Denso | 104210-1460, 104210-1461 |
| J&N Electrical Products | 400-52414 |
| Lester | 11577 |
| Toyota | 27060-0T130 |
