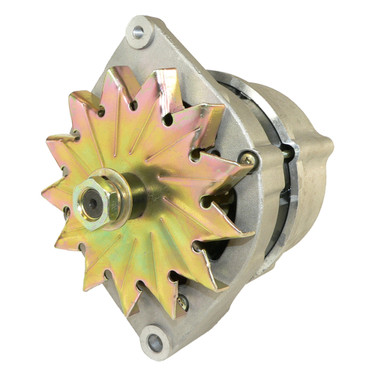

Alternator for Case 3150 Patriot 2004-2009 0120484027, 327121A1 400-24032
Alternator for Case 3150 Patriot 2004-2009 0120484027, 327121A1 400-24032
Alternator for Case 3150 Patriot 2004-2009 0120484027, 327121A1 400-24032
Alternator for Case 3150 Patriot 2004-2009 0120484027, 327121A1 400-24032

Alternator for Case 3150 Patriot 2004-2009 0120484027, 327121A1 400-24032

Item #: 400-24032

Order today to get this price.

$101.46
Next Day Air Shipping for
Order today and ships out next business day.
Order in the next hrs mins secs
DB Electrical alternators are highly engineered for excellence in performance.
  • Built to Beat the Heat: High temperature epoxy and high temperature grease withstand extreme heat
  • Heavy-duty rectifiers and high-quality regulators enhance superior charging performance
  • Most alternators are supplied with final test results and performance curve
  • Direct-fit replacement and easy installation made possible with OEM fitment specifications
  • Factory direct, money-saving alternator typically priced substantially less than OEM counterparts
Check if this fits your vehicle
HOW TO FIND YOUR FITMENT
Two ways to ensure proper fitment
DO YOU KNOW YOUR
OEM PART NUMBER?
LOOK FOR YOUR
MAKE/ MODEL/ YEAR
Enter your make/model/year below to find the right part.
  • Product Info
  • Applications List
  • Part Replacement List
  • Policy Information
  • Reviews

Overview

DB Electrical Alternators
DB Electrical keeps watercrafts moving forward with quality aftermarket alternators. We work directly with factories to ensure each component is manufactured to our exacting quality control standards. But because there is no middleman, we can offer these exceptional-quality electrical components at low factory direct prices.

With DB Electrical alternators, you’ll get …

  • Superior Quality Every Time – Our aftermarket alternators deliver performance that’s equivalent to the original.
  • Direct-Fit OEM Replacement Parts – DB Electrical aftermarket alternators are designed for perfect fitment to replace the ones that originally came with your vehicle.
  • Engineer-Tested Excellence – Our alternators go through a rigorous testing program to ensure optimal performance. Most alternators are supplied with their final test results and performance curve.

Reasons to choose DB Electrical for your next alternator:

  • Built to Take the Heat – Most DB Electrical alternators offer high-temperature epoxy, heavy-duty rectifiers, high-quality regulators, top-quality bearings and high-temperature grease for better charging and longer life under high-heat environments.
  • Corrosion Resistance – Plated fans, pulleys and hardware offer protection against rust-producing dampness.
  • Flame Arrestor Screens – Where applicable, alternators come with these screens to meet Marine SAEJ1171 Certification as laid out by the SAE.
  • Brand New Alternator – Never settle for a secondhand one. Many places will try to sell you a used alternator for about the price we’ll sell you a new one.

The DB Electrical Advantage – 1-Year Warranty
DB Electrical delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your alternator meets your expectations.

Item Number: 400-24032

100% Brand New Aftermarket Part From DB Electrical

Product Specs

Critical Note
Item ConditionAftermarket Part
Unit TypeAlternator
Part TypeUNIT
Voltage12
RotationCW
Amperage120
RegulatorIR
Fan TypeEF
FitsJOHN DEERE
OEM Chaff Screen May Not Fit on the Replacement Type Units

Applications List

Select Make & Type
MAKE TYPE MODEL YEAR ENGINE
Case IHSprayer3150 Patriot2004Cummins 5.9L Diesel
Case IHSprayer3150 Patriot2005Cummins 5.9L Diesel
Case IHSprayer3150 Patriot2006Cummins 5.9L Diesel
Case IHSprayer3150 Patriot2007Cummins 5.9L Diesel
Case IHSprayer3150 Patriot2008Cummins 5.9L Diesel
Case IHSprayer3150 Patriot2009Cummins 5.9L Diesel
Case IHSprayer3185 Patriot2004Cummins 5.9L Diesel
Case IHSprayer3185 Patriot2005Cummins 5.9L Diesel
Case IHSprayer3185 Patriot2006Cummins 5.9L Diesel
Case IHSprayer3185 Patriot2007Cummins 5.9L Diesel
Case IHSprayer3185 Patriot2008Cummins 5.9L Diesel
Case IHSprayer3185 Patriot2009Cummins 5.9L Diesel
Case IHSprayerSPX3150 Patriot1999
Case IHSprayerSPX3150 Patriot2000
Case IHSprayerSPX3150 Patriot2001
Case IHSprayerSPX3150 Patriot2002
Case IHSprayerSPX3185 Patriot1999
Case IHSprayerSPX3185 Patriot2000
Case IHSprayerSPX3185 Patriot2001
Case IHSprayerSPX3185 Patriot2002
Case IHSprayerSPX3185 Patriot2003
Case IHSprayerSPX3185 Patriot2004
Case IHSprayerSPX32002001
Case IHSprayerSPX32002002
Case IHSprayerSPX32002003
Case IHSprayerSPX32002004
Case IHSprayerSPX3200 Patriot2001
Case IHSprayerSPX3200 Patriot2002
Case IHSprayerSPX3200B Patriot2000
Case IHSprayerSPX3200B Patriot2001
Case IHSprayerSPX33102004
Case IHSprayerSPX33102005
Case IHSprayerSPX33102006
Case IHSprayerSPX33102007
Case IHSprayerSPX33102008
Case IHSprayerSPX33102009
JOHN DEERECombine9540AllAll
JOHN DEERECombine9560AllAll
JOHN DEERECombine9560SHAllAll
JOHN DEERECombine9580AllAll
JOHN DEERECombine9640AllAll
JOHN DEERECombine9660AllAll
JOHN DEERECombine9660 CTSAllAll
JOHN DEERECombine9660 STSAllAll
JOHN DEERECombine9680AllAll
JOHN DEERECombine9760 STSAllAll
JOHN DEERECombineT660AllJD PT 9.0L Diesel
JOHN DEERECombineT670AllJD PT 9.0L Diesel
JOHN DEERECotton Picker9996All6081 Diesel
JOHN DEEREEngine - Marine4039DFM (Code 3113)All3.9L - 239ci - 4cyl
JOHN DEEREEngine - Marine4039DFM (Code 3116)All3.9L - 239ci - 4cyl
JOHN DEEREEngine - Marine4045DFM50 (Code 3108)All4.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045DFM70 (Code 3108)20044.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045DFM70 (Code 3108)20054.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045DFM70 (Code 3108)20064.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045DFM70 (Code 3108)20074.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045TFM (Code 3113)All4.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045TFM (Code 3116)All4.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045TFM50 (Code 3108)All4.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045TFM75 (Code 3141)20044.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045TFM75 (Code 3141)20054.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045TFM75 (Code 3141)20064.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine4045TFM75 (Code 3141)20074.5L - 276ci - 4cyl
JOHN DEEREEngine - Marine6068DFM (Code 3113)All6.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068DFM (Code 3116)All6.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068SFM50 (Code 3141)20046.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068SFM50 (Code 3141)20056.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068SFM50 (Code 3141)20066.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068SFM50 (Code 3141)20076.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM (Code 3113)All6.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM (Code 3116)All6.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM50 (Code 3108)All6.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM75 (Code 3141)20046.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM75 (Code 3141)20056.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM75 (Code 3141)20066.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM75 (Code 3141)20076.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM76 (Code 3141)20046.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM76 (Code 3141)20056.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM76 (Code 3141)20066.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6068TFM76 (Code 3141)20076.8L - 414ci - 6cyl
JOHN DEEREEngine - Marine6076AFM (Code 3134)All7.6L - 466ci - 6cyl
JOHN DEEREEngine - Marine6076AFM30 (Code 3134)All7.6L - 466ci - 6cyl
JOHN DEERELoaders530B Log LoaderAllAll
JOHN DEERELoaders535 Log LoaderAllAll
JOHN DEERESkidders640HAllJD 6.8L 172HP Diesel
JOHN DEERESkidders648HAllJD 6.8L 172HP Diesel
JOHN DEERESkidders748HAllJD 6.8L 189HP Diesel
JOHN DEERESkidders848HAllJD 6.8L 200HP Diesel

Replaces These Part Numbers

ARROWHEADABO0356, 400-24032, B0120484027
BOSCH0-120-484-027
CARGO113531
CASE327121A1
JOHN DEEREAH165975
LESTER12373
NSAALT-2231
WAI12373N

Frequently Asked Questions

Q: Do I need a larger charge wire for a High Output unit?
A: The high amp unit will operate better than stock, but not to its full potential without a larger charge wire. It’s the same reason firetrucks do not use garden hoses. It is IMPARATIVE to have proper charge and ground cables.

Q: Does a High Amp unit cause any damage to my battery or my vehicles charging system?
A: As long as it is installed properly with battery in good condition, then no. A High Output unit works exactly like a factory unit and only produces what is being demanded. No alternator works continuously at full output. Higher amperage is not bad and will not hurt a battery, but high voltage will blow one up.

Q: Will aftermarket underdrive pulleys (crankshaft power pulley) have any effect on my alternator?
A: Yes, underdrive crankshaft pulleys slow all the components (power steering, a/c, and alternator) to provide more power to the rear wheels. In some cases, the charging systems will fall totally on the battery at idle and completely stop charging.

Q: Where is the best place to get a voltage reading of the alternator output?
A: You’ll get the most accurate voltage reading from the back of the alternator at the main charge post that runs directly to the battery. This must be done while the vehicle is running.

Q: Why is the pulley on a high amp alternator smaller than my stock pulley?
A: The smaller pulley advances the power curve of the alternator just slightly, which produces a little more amperage around the idle if needed.

Q: Will I need a smaller belt for my high amp unit?
A: This varies by application because not all belts and belt tensioners are in the same condition. The tensioner will always tell you if you need a new belt or not. If it’s in range, you will not. If it is out, you will. Generally, you will need a belt that is one inch shorter than stock. You should have no problem finding a replacement wherever you buy your parts. V belt applications simply re-adjust your belt tensions to 3/8” deflection.

Q: What is the difference between a one wire, self-exciting and a self-energizing regulator?
A: Nothing. They are all exactly the same. Different manufacturers use different terms for marketing. The only wire to hook up is the charge wire to the battery. This does require modification for the alternator charge light on the dash.

Q: My stock unit used a five-groove pulley, and you sent my high amp alternator with a 6 groove. Why and what can I do?
A: 5 groove overdrive pullies are not produced. Install the belt on the back groove of the pulley closest to the fan or body of the alternator. The fan is internal, and this application will work just fine.

Q: Can your alternator be run in dual or triple alternator applications?
A: Yes. When wired and mounted correctly, the alternator can run in either dual or triple applications.

Q: Will I need a new battery with a high amp alternator?
A: If your battery is in good condition, and in spec of its OEM rating, then no. Your battery should work equally well with either the OEM and a High Amp unit.
