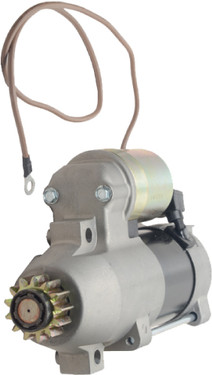

Starter for Yamaha Marine LZ, VZ, Z, 150HP-175HP S114-836A 410-44078
Starter for Yamaha Marine LZ, VZ, Z, 150HP-175HP S114-836A 410-44078
Starter for Yamaha Marine LZ, VZ, Z, 150HP-175HP S114-836A 410-44078

Starter for Yamaha Marine LZ, VZ, Z, 150HP-175HP S114-836A 410-44078

Item #: 410-44078

30-DAY RETURN POLICY

If your order arrives and it’s not exactly what you want, you may return it within 30 days for a refund. We know that people sometimes order a part and then discover it’s not exactly the one they need for the repair. We understand and want to work with you. Just make sure the item is in its original packaging and in good condition free of damage.

When a returned product comes back to us, we’ll check it over to make sure it’s in ‘Like New’ condition and free from damage such as dents, scratches, cracks, abuse, defacement or indication of removed screws/fasteners or seals. Return processing may take up to 5 business days from the time your product is received by DB Electrical.

To return a product, simply click here to start the process.

Order today to get this price.

$159.70
Next Day Air Shipping for
Order by 4pm EST, M-F
Order in the next hrs mins secs

Our parts specialists can help answer all your questions. For further assistance call (800) 753-2242

Have tax exempt status? Call 800-753-2242 to order.
DB Electrical marine starters keep the fun on your boat or jet ski going.
  • Fast engine starts thanks to more torque from high quality magnets or field coils
  • Cleaner and drier inner workings with sealed housings that block performance-robbing residue
  • Epoxied armatures and sealed solenoids combat corrosive effects of water
  • Designed specifically for watercraft, marine grade starters meet SAEJ1171 certification
  • Factory direct, money saving starters typically priced significantly less than OEM counterparts
Check if this fits your vehicle
HOW TO FIND YOUR FITMENT
Two ways to ensure proper fitment
DO YOU KNOW YOUR
OEM PART NUMBER?
Look for your OEM part number below or use our search tool.
LOOK FOR YOUR
MAKE/ MODEL/ YEAR
Enter your make/model/year below to find the right part.
  • Product Info
  • Applications List
  • Part Replacement List
  • Policy Information
  • Reviews

Overview

DB Electrical Marine Starters
DB Electrical keeps watercrafts moving forward on the lakes, rivers and coastlines. We work directly with factories to ensure each component is manufactured to our exacting quality control standards. But because there is no middleman, we can offer these exceptional-quality electrical components at low factory direct prices.

Marine Starters that Exceed OEM Quality
The stationary gear of many OEM marine grade starters is made of a composite material that is prone to premature wear and corrosion. These starters from DB Electrical improve upon the original design. With our starters, a high-quality metal gear is embedded into the composite material for added stability and performance. The advantage is a more durable and longer lasting starter that keeps you enjoying more days out on the water.

With DB Electrical starters, you’ll get …

  • Superior Quality Every Time – Our aftermarket starters deliver high performance
  • Direct-Fit OEM Replacement Parts – DB Electrical aftermarket starters are designed for perfect fitment to replace the ones that originally came with your marine engine
  • Engineer-Tested Excellence – Our starters go through a rigorous testing program to ensure optimal performance

Reasons to choose DB Electrical for your next starter:

  • Fast engine starts – High quality magnets or field coils deliver more torque for fast and efficient engine starts
  • Seals out residue – Sealed housings and bearings keep the internal workings cleaner and drier
  • Resistant properties – Carefully engineered to combat the corrosive effects of water – epoxied armatures, top quality bearings and magnets, and sealed solenoids
  • Brand new starter – Never settle for a secondhand one

The DB Electrical Advantage – 1-Year Warranty
DB Electrical delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your starter meets your expectations.

Item Number: 410-44078

100% Brand New Aftermarket Part From DB Electrical

Product Specs

Item ConditionAftermarket Part
Unit TypeStarter
Part TypeUNIT
Voltage12
RotationCCW
Teeth13
KW1.4
Starter TypePMGR
FitsYAMAHA OUTBOARDS LZ
VZ
LZ
Z 150-175HP 2000-ON

Applications List

Select Make & Type
MAKE TYPE MODEL YEAR ENGINE
YAMAHAOutboard MotorsLZ150TXR2000150HP
YAMAHAOutboard MotorsLZ150TXR2001150HP
YAMAHAOutboard MotorsLZ150TXR2002150HP
YAMAHAOutboard MotorsLZ150TXR2003150HP
YAMAHAOutboard MotorsLZ150TXR2004150HP
YAMAHAOutboard MotorsLZ150TXR2005150HP
YAMAHAOutboard MotorsLZ150TXR2006150HP
YAMAHAOutboard MotorsLZ200TXR2000200HP
YAMAHAOutboard MotorsLZ200TXR2001200HP
YAMAHAOutboard MotorsLZ200TXR2002200HP
YAMAHAOutboard MotorsLZ200TXR2003200HP
YAMAHAOutboard MotorsLZ200TXR2004200HP
YAMAHAOutboard MotorsLZ200TXR2005200HP
YAMAHAOutboard MotorsLZ200TXR2006200HP
YAMAHAOutboard MotorsLZ200TXR2007200HP
YAMAHAOutboard MotorsLZ200TXR2008200HP
YAMAHAOutboard MotorsLZ200TXR2009200HP
YAMAHAOutboard MotorsLZ200TXR2010200HP
YAMAHAOutboard MotorsLZ200TXR2011200HP
YAMAHAOutboard MotorsLZ200TXR2012200HP
YAMAHAOutboard MotorsLZ200TXR2013200HP
YAMAHAOutboard MotorsVZ150TLR2000150HP
YAMAHAOutboard MotorsVZ150TLR2001150HP
YAMAHAOutboard MotorsVZ150TLR2002150HP
YAMAHAOutboard MotorsVZ150TLR2003150HP
YAMAHAOutboard MotorsVZ150TLR2004150HP
YAMAHAOutboard MotorsVZ150TLR2005150HP
YAMAHAOutboard MotorsVZ150TLR2006150HP
YAMAHAOutboard MotorsVZ150TLR2007150HP
YAMAHAOutboard MotorsVZ150TLR2008150HP
YAMAHAOutboard MotorsVZ150TLR2009150HP
YAMAHAOutboard MotorsVZ150TLR2010150HP
YAMAHAOutboard MotorsVZ150TLR2011150HP
YAMAHAOutboard MotorsVZ150TLR2012150HP
YAMAHAOutboard MotorsVZ150TLR2013150HP
YAMAHAOutboard MotorsVZ150TLR2014150HP
YAMAHAOutboard MotorsVZ150TLR2015150HP
YAMAHAOutboard MotorsVZ175TLR2001175HP
YAMAHAOutboard MotorsVZ175TLR2002175HP
YAMAHAOutboard MotorsVZ175TLR2003175HP
YAMAHAOutboard MotorsVZ175TLR2004175HP
YAMAHAOutboard MotorsVZ175TLR2005175HP
YAMAHAOutboard MotorsVZ175TLR2006175HP
YAMAHAOutboard MotorsVZ175TLR2007175HP
YAMAHAOutboard MotorsVZ175TLR2008175HP
YAMAHAOutboard MotorsVZ175TLR2009175HP
YAMAHAOutboard MotorsVZ175TLR2010175HP
YAMAHAOutboard MotorsVZ175TLR2011175HP
YAMAHAOutboard MotorsVZ175TLR2012175HP
YAMAHAOutboard MotorsVZ175TLR2013175HP
YAMAHAOutboard MotorsVZ200TLR2001200HP
YAMAHAOutboard MotorsVZ200TLR2002200HP
YAMAHAOutboard MotorsVZ200TLR2003200HP
YAMAHAOutboard MotorsVZ200TLR2004200HP
YAMAHAOutboard MotorsZ150TLR2000150HP
YAMAHAOutboard MotorsZ150TLR2001150HP
YAMAHAOutboard MotorsZ150TLR2002150HP
YAMAHAOutboard MotorsZ150TLR2003150HP
YAMAHAOutboard MotorsZ150TLR2004150HP
YAMAHAOutboard MotorsZ150TXR2000150HP
YAMAHAOutboard MotorsZ150TXR2001150HP
YAMAHAOutboard MotorsZ150TXR2002150HP
YAMAHAOutboard MotorsZ150TXR2003150HP
YAMAHAOutboard MotorsZ150TXR2004150HP
YAMAHAOutboard MotorsZ150TXR2005150HP
YAMAHAOutboard MotorsZ150TXR2006150HP
YAMAHAOutboard MotorsZ175TXR2001175HP
YAMAHAOutboard MotorsZ175TXR2002175HP
YAMAHAOutboard MotorsZ175TXR2003175HP
YAMAHAOutboard MotorsZ175TXR2004175HP
YAMAHAOutboard MotorsZ175TXR2005175HP
YAMAHAOutboard MotorsZ175TXR2006175HP
YAMAHAOutboard MotorsZ200TLR2000200HP
YAMAHAOutboard MotorsZ200TLR2001200HP
YAMAHAOutboard MotorsZ200TLR2005200HP
YAMAHAOutboard MotorsZ200TLR2006200HP
YAMAHAOutboard MotorsZ200TXR2000200HP
YAMAHAOutboard MotorsZ200TXR2001200HP
YAMAHAOutboard MotorsZ200TXR2002200HP
YAMAHAOutboard MotorsZ200TXR2003200HP
YAMAHAOutboard MotorsZ200TXR2004200HP
YAMAHAOutboard MotorsZ200TXR2005200HP
YAMAHAOutboard MotorsZ200TXR2006200HP
YAMAHAOutboard MotorsZ200TXR2007200HP
YAMAHAOutboard MotorsZ200TXR2008200HP
YAMAHAOutboard MotorsZ200TXR2009200HP
YAMAHAOutboard MotorsZ200TXR2010200HP
YAMAHAOutboard MotorsZ200TXR2011200HP
YAMAHAOutboard MotorsZ200TXR2012200HP
YAMAHAOutboard MotorsZ200TXR2013200HP

Replaces These Part Numbers

API MARINEMOT5018
ARCO MARINE3431
ARROWHEADSHI0136, 410-44078, S114-836A
EMP PARTS4-6426
HITACHIS114-836A
J&N Electrical Products410-44078
LESTER18348
SIERRA MARINE18-6426
WAI18348N, 2-2519-HI
YAMAHA68F-81800-00-00, 68F-81800-01-00, 68F-81800-02-00

Frequently Asked Questions

Q: Why is my starter suddenly making a grinding noise?
A: Several things could produce grinding noises. First check to see if it has come loose. If so, install and replace any shims for proper drive gear to flywheel alignment and re-torque to OE specs. If it is still grinding, remove it for closer inspection, making sure to give the flywheel a detailed look. Replace components as needed.

Q: What is a gear reduction starter?
A: In short, it’s a super torque starter. It has a set of planetart gears that give it a lot of speed and the reduction of those gears gives it a lot of torque, providing the best of both worlds. These starters were previously known as Super Torque for racing applications for use on high compression engines. Today, however, nearly everything has a gear reduction starter on it. These starters are lighter, faster, smaller and use less CCA (cold cranking amps) to get going.

Q: How many amps does it take to start an engine?
A: It takes 500-800 CCA (cold cranking amps) on average. High compression engines will pull even more depending on compression ratios.

Q: Why am I hearing a whine or whizzing sound without the engine cracking?
A: The drive gear is slipping and not engaging the flywheel. Replacement is needed.

Q: Why does my starter keep running after the car starts?
A: It is either the solenoid or the ignition switch. You should consult a mechanic immediately.

Q: My car leaks oil on the starter, will that affect it?
A: Yes. An oil-soaked armature commutator and brushes will wear out much faster and you run the risk of a dead start burning up the field coils.

Q: Why does the battery cable on my starter smoke?
A: Resistance. Either from a weak, loose or corroded cable or a failing worn starter. Replace components as needed.

Q: Why does the starter quit working and turning over on my car when it’s hot?
A: It’s most likely a heat-soaked solenoid. Heat-soaked solenoids have much more internal resistance when hot. Replace if needed and add a heat shield and/or wrap the headers with heat barrier wrap.

Q: When do I need to replace my starter?
A: Replace your starter under any of these conditions. 1)If your engine doesn't crank constantly every time the key is turned. 2) If the engine will not turn over and you hear a loud click. 3) If the starter fails to turn off or grinds the entire drive. In summary, if you have a strong battery and any one of these conditions exist, you should replace your starter.
