Overview
Item Number:
100% Brand New Aftermarket Part From DB Electrical
Product Specs
| Item Condition | Aftermarket Part |

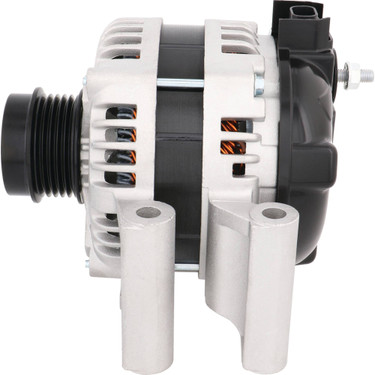

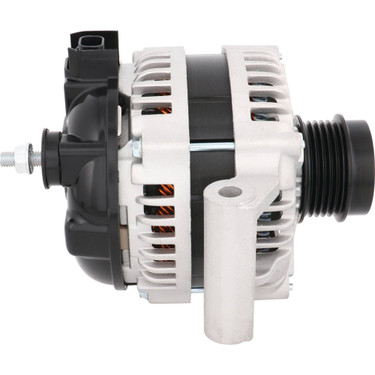

| Description | Alternator |
| Lester | 11682, 14883 |
| Family | Denso SC (Hairpin) |
| Volt | 12 |
| Amps | 150 |
| Condition | New |
| Regulator Clock | 0.375 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 8.300mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole ID 2 | 8.4mm x 10.3mm |
| Mount Hole 2 Type | Slotted |
| Mount Hole ID 3 | 10.400mm |
| Mount Hole 3 Type | Unthreaded |
| Mounting Ear Thickness | 3.110" |
| Mounting Ear Thickness | 79mm |
| Mounting Ear 2 Thickness | 3.110" |
| Mounting Ear 2 Thickness | 79mm |
| Mounting Ear 3 Thickness | 3.110" |
| Mounting Ear 3 Thickness | 79mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | F |
| Terminal 3 Size | Spade |
| Terminal ID 4 | L |
| Terminal 4 Size | Spade |
| Polarity | Negative |
| Number Of Grooves | 5 |
| Groove OD | 2.126" |
| Groove OD | 54mm |
| Pulley Type | Decoupler |
| Pulley Outer Diameter | 2.382" |
| Pulley Outer Diameter | 60.500mm |
Applications List
Select Make & Type
| MAKE | TYPE | MODEL | YEAR | ENGINE |
| Buick | Auto and Light Truck | REGAL SPORTBACK | 2018 | 2.0L |
| Buick | Auto and Light Truck | REGAL SPORTBACK | 2019 | 2.0L |
| Buick | Auto and Light Truck | REGAL TOURX | 2018 | 2.0L |
| Buick | Auto and Light Truck | REGAL TOURX | 2019 | 2.0L |
| Buick | Auto and Light Truck | REGAL | 2014 | 2.0L |
| Buick | Auto and Light Truck | REGAL | 2015 | 2.0L |
| Buick | Auto and Light Truck | REGAL | 2016 | 2.0L |
| Buick | Auto and Light Truck | REGAL | 2017 | 2.0L |
| Cadillac | Auto and Light Truck | ATS | 2013 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2013 | 150cu in, 2.5L L4 |
| Cadillac | Auto and Light Truck | ATS | 2013 | 1998cc, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2013 | 2457cc, 2.5L L4 |
| Cadillac | Auto and Light Truck | ATS | 2014 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2014 | 150cu in, 2.5L L4 |
| Cadillac | Auto and Light Truck | ATS | 2014 | 1998cc, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2014 | 2457cc, 2.5L L4 |
| Cadillac | Auto and Light Truck | ATS | 2015 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2015 | 150cu in, 2.5L L4 |
| Cadillac | Auto and Light Truck | ATS | 2016 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2016 | 150cu in, 2.5L L4 |
| Cadillac | Auto and Light Truck | ATS | 2017 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2017 | 150cu in, 2.5L L4 |
| Cadillac | Auto and Light Truck | ATS | 2018 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | ATS | 2019 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | CTS | 2014 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | CTS | 2014 | 1998cc, 2.0L L4 |
| Cadillac | Auto and Light Truck | CTS | 2015 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | CTS | 2016 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | CTS | 2017 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | CTS | 2018 | 122cu in, 2.0L L4 |
| Cadillac | Auto and Light Truck | CTS | 2019 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | CAMARO | 2016 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | CAMARO | 2017 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | CAMARO | 2018 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | CAMARO | 2019 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | COLORADO | 2015 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | COLORADO | 2016 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | COLORADO | 2017 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | COLORADO | 2018 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | COLORADO | 2019 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | IMPALA | 2014 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | Impala | 2014 | 2457cc, 2.5L L4 |
| Chevrolet | Auto and Light Truck | IMPALA | 2015 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | IMPALA | 2016 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | IMPALA | 2017 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | IMPALA | 2018 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | IMPALA | 2019 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | MALIBU LIMITED | 2016 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2013 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2013 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | Malibu | 2013 | 1998cc, 2.0L L4 |
| Chevrolet | Auto and Light Truck | Malibu | 2013 | 2457cc, 2.5L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2014 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2014 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | Malibu | 2014 | 1998cc, 2.0L L4 |
| Chevrolet | Auto and Light Truck | Malibu | 2014 | 2457cc, 2.5L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2015 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2015 | 153cu in, 2.5L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2016 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2017 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2018 | 122cu in, 2.0L L4 |
| Chevrolet | Auto and Light Truck | MALIBU | 2019 | 122cu in, 2.0L L4 |
| GMC | Auto and Light Truck | CANYON | 2015 | 153cu in, 2.5L L4 |
| GMC | Auto and Light Truck | CANYON | 2016 | 153cu in, 2.5L L4 |
| GMC | Auto and Light Truck | CANYON | 2017 | 153cu in, 2.5L L4 |
| GMC | Auto and Light Truck | CANYON | 2018 | 153cu in, 2.5L L4 |
| GMC | Auto and Light Truck | CANYON | 2019 | 153cu in, 2.5L L4 |
Replaces These Part Numbers
| Ac Delco Tools | 334-2985 |
| Arrowhead | 400-52478, 400-52478R |
| Delco | 13592811, 22892569 |
| Denso | 104210-1960, 104210-1961, 104210-1962, 104210-1963, 104210-1964, 104211-9790, TN104210-1960, TN104210-1963, TN104210-1964 |
| General Motors | 13520817, 13529304, 13592811, 22892569, 22996928 |
| Lester | 11682, 14883 |
