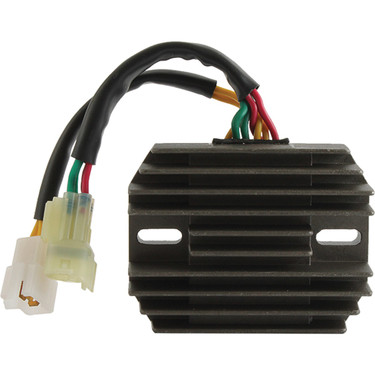

Voltage Regulator /Rectifier 12V for 2002 Arctic Cat 375 ATV 3402-682
Voltage Regulator /Rectifier 12V for 2002 Arctic Cat 375 ATV 3402-682
New Voltage Regulator /Rectifier 12V For 2002 Arctic Cat 375 ATV 3402-682

Voltage Regulator /Rectifier 12V for 2002 Arctic Cat 375 ATV 3402-682

Item #: 230-22147

30-DAY RETURN POLICY

If your order arrives and it’s not exactly what you want, you may return it within 30 days for a refund. We know that people sometimes order a part and then discover it’s not exactly the one they need for the repair. We understand and want to work with you. Just make sure the item is in its original packaging and in good condition free of damage.

When a returned product comes back to us, we’ll check it over to make sure it’s in ‘Like New’ condition and free from damage such as dents, scratches, cracks, abuse, defacement or indication of removed screws/fasteners or seals. Return processing may take up to 5 business days from the time your product is received by DB Electrical.

To return a product, simply click here to start the process.

Order today to get this price.

$51.56
Next Day Air Shipping for
Order by 4pm EST, M-F
Order in the next hrs mins secs

Our parts specialists can help answer all your questions. For further assistance call (800) 753-2242

This product is currently unavailable.

Have tax exempt status? Call 800-753-2242 to order.
DB Electrical Voltage Regulators protect your electrical system
  • Maintains a consistent and manageable output of voltage
  • Controls the flow of electric between the alternator and battery
  • Engineer tested to ensure optimal performance
  • Direct-fit matches OEM specifications for easy installation
  • Factory direct, money-saving pricing keeps more money in your pocket
Check if this fits your vehicle
HOW TO FIND YOUR FITMENT
Two ways to ensure proper fitment
DO YOU KNOW YOUR
OEM PART NUMBER?
Look for your OEM part number below or use our search tool.
LOOK FOR YOUR
MAKE/ MODEL/ YEAR
Enter your make/model/year below to find the right part.
  • Product Info
  • Applications List
  • Part Replacement List
  • Policy Information
  • Reviews

Overview

DB Electrical Voltage Regulators
DB Electrical keeps vehicles of every shape and size moving forward – from mowers, motorcycles and ATVs to automobiles, tractors, pickups and large commercial trucks. We work directly with factories to ensure each component is manufactured to our exacting quality control standards that meet genuine OEM specifications. But because there is no middleman, we can offer these exceptional-quality electrical components at low factory direct prices.

Purpose of a Voltage Regulator
A voltage regulator is a seemingly simple component, but it performs one of the most vital tasks in your vehicle’s electrical system. As the name suggests, the voltage regulator maintains a consistent and manageable output of voltage passing through the system. As the alternator or generator produces power, the voltage regulator controls the voltage capacity that goes to the battery. If too much voltage is allowed to pass, it can cause damage to the battery, wiring system and other electrical accessories.

With DB Electrical voltage regulators, you’ll get …

  • OEM Quality Every Time – Our aftermarket voltage regulators deliver performance that’s equivalent to the ones made by OEM suppliers.
  • Direct-Fit OEM Replacement Parts – DB Electrical aftermarket voltage regulators are designed for perfect fitment to replace the one that originally came with your vehicle.
  • Engineer-Tested Excellence – Our voltage regulators go through a rigorous testing program to ensure optimal performance.

Reasons to choose DB Electrical for your next voltage regulator:

  • Premium materials – Higher quality delivers exceptional performance.
  • Long-term reliability –Long service life to keep your vehicle’s electrical system running better for a longer time.
  • Brand new – Never settle for a secondhand one.

The DB Electrical Advantage – 1-Year Warranty
DB Electrical delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your voltage regulator meets your expectations.

Item Number: 230-22147

100% Brand New Aftermarket Part From DB Electrical

Product Specs

Item ConditionAftermarket Part
Unit TypePart
Part TypeRECTIFIER / REGULATOR
Voltage12

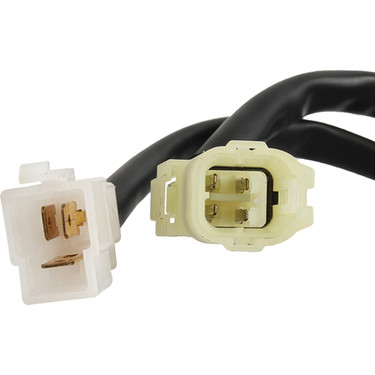

Dimension109mm L x 85mm W x 41mm T; Plug #1 - (3) Black Wires - 7 Inches Long; Plug #2 - (2) Black w/Red Wires, (2) Black w/White Wires - 7 Inches Long; Mounting Holes 65mm Center-to-Center (Oblong Holes);
FitsArctic Cat 375 ATV 2002
Arctic Cat 400 ATV 2001-08
Arctic Cat 500 ATV 2000-08
Piaggio Trackmaster 400
Piaggio Trackmaster 500

Applications List

Select Make & Type
MAKE TYPE MODEL YEAR ENGINE
ARCTIC CATATV375 2X42002376cc
ARCTIC CATATV375 4X42002376cc
ARCTIC CATATV400 2X42001376cc
ARCTIC CATATV400 2X42002376cc
ARCTIC CATATV400 2X42003376cc
ARCTIC CATATV400 2X42004376cc
ARCTIC CATATV400 4X42001376cc
ARCTIC CATATV400 4X42002376cc
ARCTIC CATATV400 4X42003376cc
ARCTIC CATATV400 4X42004376cc
ARCTIC CATATV400 4X42005376cc
ARCTIC CATATV400 4X42006376cc
ARCTIC CATATV400 4X42007376cc
ARCTIC CATATV400 4X42008376cc
ARCTIC CATATV400 FIS2003376cc
ARCTIC CATATV400 FIS2004376cc
ARCTIC CATATV400 FIS2005376cc
ARCTIC CATATV400 FIS2006376cc
ARCTIC CATATV400 FIS2007376cc
ARCTIC CATATV400 FIS2008376cc
ARCTIC CATATV400 TBX2004376cc
ARCTIC CATATV400 TBX2005376cc
ARCTIC CATATV400 TBX2006376cc
ARCTIC CATATV400 TRV2007376cc
ARCTIC CATATV400 TRV2008376cc
ARCTIC CATATV400 VP2005376cc
ARCTIC CATATV400 VP2006376cc
ARCTIC CATATV500 4X4 Automatic2000493cc
ARCTIC CATATV500 4X4 Automatic2001493cc
ARCTIC CATATV500 4X4 Automatic2002493cc
ARCTIC CATATV500 4X4 Automatic2003493cc
ARCTIC CATATV500 4X4 Automatic2004493cc
ARCTIC CATATV500 4X4 Automatic2005493cc
ARCTIC CATATV500 4X4 Automatic2006493cc
ARCTIC CATATV500 4X4 Automatic2007493cc
ARCTIC CATATV500 4X4 Automatic2008493cc
ARCTIC CATATV500 4X4 Automatic2009493cc
ARCTIC CATATV500 4X4 Manual2000493cc
ARCTIC CATATV500 4X4 Manual2001493cc
ARCTIC CATATV500 4X4 Manual2002493cc
ARCTIC CATATV500 4X4 Manual2003493cc
ARCTIC CATATV500 4X4 Manual2004493cc
ARCTIC CATATV500 4X4 Manual2005493cc
ARCTIC CATATV500 4X4 Manual2006493cc
ARCTIC CATATV500 4X4 Manual2007493cc
ARCTIC CATATV500 4X4 Manual2008493cc
ARCTIC CATATV500 4X4 Manual2009493cc
ARCTIC CATATV500 FIS2002493cc
ARCTIC CATATV500 FIS2003493cc
ARCTIC CATATV500 FIS2004493cc
ARCTIC CATATV500 FIS2005493cc
ARCTIC CATATV500 FIS2006493cc
ARCTIC CATATV500 FIS2007493cc
ARCTIC CATATV500 FIS2008493cc
ARCTIC CATATV500 TBX2002493cc
ARCTIC CATATV500 TBX2003493cc
ARCTIC CATATV500 TBX2004493cc
ARCTIC CATATV500 TBX2005493cc
ARCTIC CATATV500 TBX2006493cc
ARCTIC CATATV500 TRV2003493cc
ARCTIC CATATV500 TRV2004493cc
ARCTIC CATATV500 TRV2005493cc
ARCTIC CATATV500 TRV2006493cc
ARCTIC CATATV500 TRV2007493cc
ARCTIC CATATV500 TRV2008493cc

Replaces These Part Numbers

ARCTCO3402-682, 3530-028, 3530-059
ARROWHEADAAC6006, 230-22147
PIAGGIO629337, 629841
SOCIETA GENERALE RICAMBI17.5280

Frequently Asked Questions

Q: Why do we need a voltage regulator in the charging system? A: A voltage regulator is crucial in the charging system to ensure a stable voltage output, protect sensitive electronics from damage due to voltage fluctuations, and control the charging rate of the battery for optimal performance and longevity.

Q: What are the different types of regulators?
A: There are three main types of regulators.

  • Internal regulators. Mounted inside or on the alternator itself.
  • External regulators. You will find these mounted on a firewall or inner fender well.
  • Adjustable regulators. These regulators have adjustable set points offering flexibility in voltage adjustment for precise control in specific applications. Depending on the specific model of regulator, they can be internal or externally mounted.
Q: What is a voltage set point.
A: A voltage set point refers to the predetermined or specified voltage level at which a voltage regulator aims to maintain the output voltage. It is a predefined reference voltage that the regulator uses as a target, adjusting its operation to ensure the output voltage closely matches this set point. The voltage set point is a crucial parameter in voltage regulation systems, helping maintain stability and reliability in electrical circuits and devices.

Q: Why does an alternator charge at 14v on a 12-volt system.
A: Alternators charge at 14 volts to generate sufficient voltage for the operation of the electrical system. The only way to charge a battery and use voltage while the car is running is to back in more voltage than is being discharged. In simple terms, it needs to generate more voltage than is being used.

Q: What causes a regulator to fail?
A: Voltage regulator failure can result from overloading, voltage spikes, overheating, contamination, age and wear, incorrect voltage, and the use of poor-quality components. Proactive maintenance and timely issue resolution are key to preventing failure and ensuring a reliable electrical system.

Q: How do I test my regulator?
A: To test your regulator:
  1. Measure voltage across the battery terminals with a multimeter while the engine is running (13.5 to 14.5 volts is normal).
  2. Rev the engine to observe voltage response.
  3. Check for AC voltage to detect potential alternator issues.
  4. Conduct a visual inspection for damage or loose connections.
  5. Use a temperature gun to check for excessive heat during operation.
  6. Refer to the service manual for specific testing procedures and voltage specifications.
  7. If unsure or encountering issues, seek professional assistance for more in-depth analysis and testing.
